Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1

Zhangjiagang Baisu Machinery Manufacture Co., Ltd.
Contact Now

Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1

Brand Name : BAISU / SUNRAY

Model Number : 5L EBM SRB65-1

Certification : CE / ISO9001

Place of Origin : ZHANGJIAGANG, JIANGSU

MOQ : 1 Set

Price : USD 24000-25000 / Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 Sets / Year

Delivery Time : 50 Days

Packaging Details : Covered with water-proof film, fastened with special container loop and hooks.

Machine Type : Plastic Bottle Making Machine

Product Range : Plastic bottles, jerry cans, jars & containers

Max Volume : 5L

Material : LDPE, HDPE, PP

Capacity : 125 Pcs/hour

Energy Need : 26.5 KW

Platen Size : 320x390 mm

Clamping Force : 68 KN

Contact Now

Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1, Detergent Bottle Blow Molding Machine, 5L Bottle Production Machine



QUICK VIEWS





 1. SRB65-1 is single station single head fully automatic blow moulding machine for 1~5L bottles specially.



 2. Machine total control system with convenient operation page design suitable for remote technical support.



 3. Adopt pressure / flow double proportion control for hydraulic system, insure platen moving speed & smoothness.



 4. Its output for 5L liquid soap bottle is 125~135 Pcs/hour, the daily capacity is bigger than 3000 bottles.





TECHNICAL PARAMETERS



 Machine Model

 Single station extruder blowing machine

 Max Product Volume  5 L
 Machine Weight  4.5 Tons
 Machine Size  3.8 x 1.8 x 2.5 m
 Screw Diameter  65 mm
 Plasticizing Capacity  75 KG
 Clamping Force  68 KN
 Platen Size  320 x 390 mm
 Platen Opening Stroke  150~500 mm
 Max Mould Size  360 x 360 mm
 Four Head Central Distance  160 mm
 Max Product Diameter or Width  135 mm
 Material Cutting Method  Hot Cutting
 Max Die Diameter  95 mm
 Total Power  41.5 KW
 Average Energy Consumption  26.5 KW



Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1

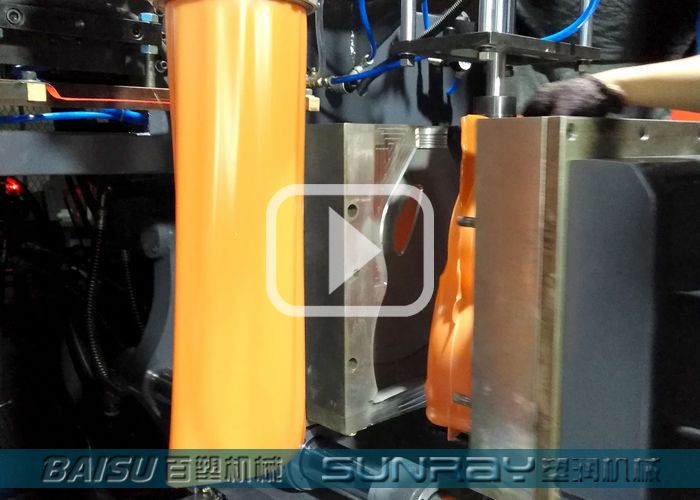

Click picture above to see SRB65-1 commissioning video for 5L liquid soap bottles



PRODUCTION ARRANGEMENT





 1. Machine Foundation Size: 3.5 x 2 m



 2. Production Area: 6 x 5 m



 3. Minimum Workshop Height: 3.0 m



 4. Air Supply Requirement: 0.8m3/min, 0.6Mpa



 5. Water Supply Requirement: 5 Tons



 6. Machine Power Consumption: 27.5 KW



 7. Production Line Power Consumption: 36.5 KW



 8. Whole Line Electricity Arrangement: 100 Amps



 9. Minimum Workers Number: 1~2 Workers





MACHINE INTRODUCTION



► 5 litre plastic bottle blow molding machine SRB65-1 is widely used in detergent liquid and liquid soap, hand washing liuqid packing field, also used in engine oil, lubrication oil, cooking oil packing field. In normal production, the cycle time is about 27 seconds. Its production capacity is 135 pcs/hour, daily output is 3240 bottles.



► The key technical points lie in precise die and core size, blow pin head diameter and design, also the suitable depth of mould cutting overflow grooves to insure the on-line deflashing result.



► Total machine control system well match with scraps on-line deflashing, neck rotary cutting, in-mould labeling, leakage testing, product conveying & packing. Optimized hydraulic system with reasonable design to control pressure and flow of double proportion, acchieve action execution fast, stable and accurate. High hardness bimetallic screw with good structure design and modulation, insure bigger plasticizing capacity, less wearing and longer working lifespan.



Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1



Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1



PURCHASE & SERVICE FLOW


1. Get customers' sample or product information to select the suitable blow molding machine model.
2. Communicate and negotiate to customers' detailed requirements and provide solution plan.
3. Confirm payment terms, price discount and make proforma invoice or contract, arrange down payment.
4. Start order production and report to customers the manufacturing progress in every week.
5. Machine is finished for mould test, bring forward commissioning report and arrange tail in works.
6. Invite customers for checking and acceptance,operation training, arrange loading and delivery.
7. Dispatch engineer for installation and commissioning, arrange machines' layout in customer' s site.
8. One year guarantee, after sales services, share our experience and remote technical support.
9. Feedback in time for customer's problem, provide solutions and customer's new project consulation.
